AMP 70

The reliable hotformer for a broad range of parts.

The HOTmatic AMP 70 is the ideal machine for the fully automated production of forgings with a diameter of up to 145 mm and a production rate of up to 80 parts per minute.

The press is also available in the CM 4-5eco WS, CM 4-5eco H and CM 4-5eco H WS versions. The H version allows the production of parts at very high speeds - up to 180 parts per minute.

In the WS version, a pre-heating equipment close to the shearing knife allows the processing of high temperature alloys.

icon
4-station
Hotformer
icon
145 mm
Part diameter
icon
50-80 parts
Output per minute
icon
15.000 kN
Press capacity

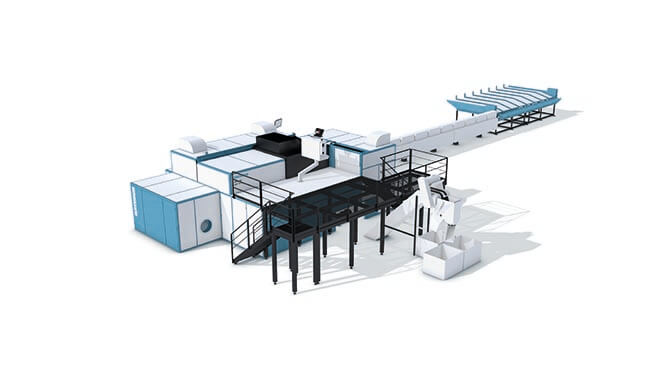

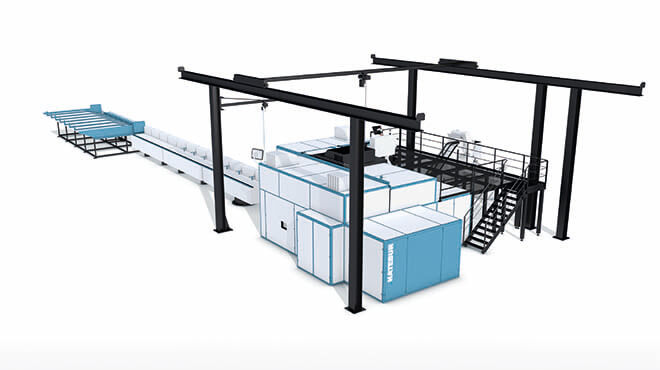

Hatebur HOTmatic AMP 70

Benefit from the following advantages

  • Very diverse parts range

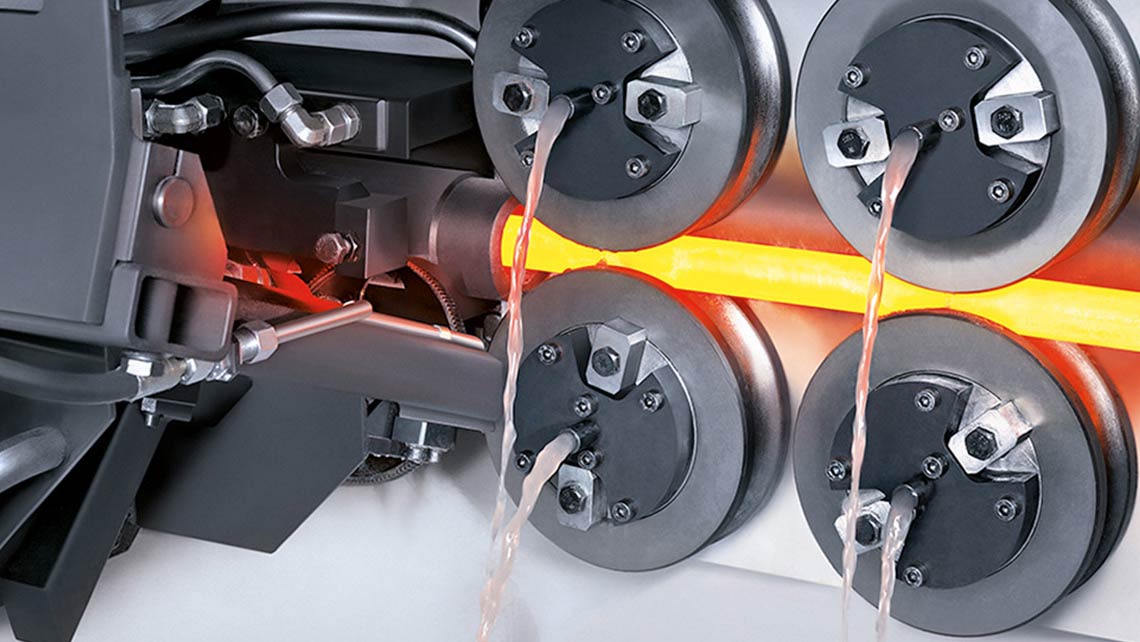

  • Servo infeed in combination with ESA 600 for maximum process reliability
  • Up to 5 kg part weight
  • Innovative touchscreen machine controls

Technical specifications

to all HOTmatic

HOTmatic Model series

AMP 70

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 XL

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 70 XL HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 20 S

3

14 – 28

0,02 – 0,17

15 – 40

~ 38

36**

140 – 200

900

AMP 20 N

3

14 – 28

0,024 – 0,217

20 – 45

~ 48

41**

140 – 200

1500

AMP 30 S

3

18 – 40

0,05 – 0,7

20 – 72

~ 67

~ 58

60

85 – 140

2500

AMP 50-9

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 50-9 HFE

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

HM 35 SAM

4

18 – 45

0,06 – 0,9

28 – 75

~ 75

~ 68

65

110 – 150

3800

HM 75 XL

4

45 – 90

0,95 – 7,5

75 – 175

~ 180

~ 144

* For round parts made of steel, depending on forming degree, sequence of operation, material and temperature.
** Max. width across flats (hexagon) made of brass approx. 38 mm
