Progressive Headers
Coldformers

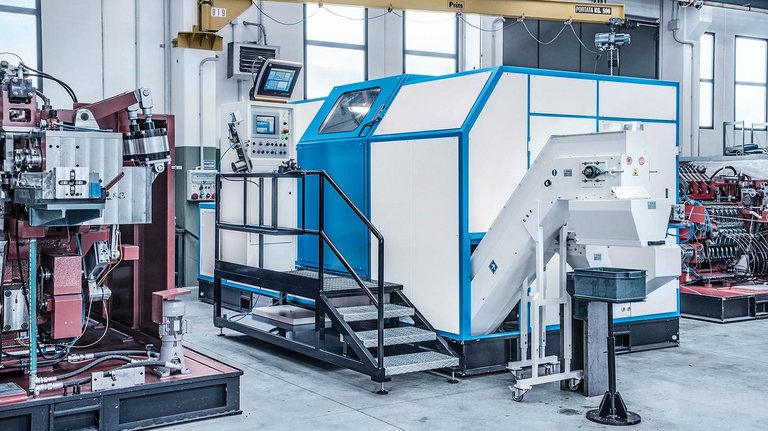

CS 616

For highest productivity in cold forming.

With the 6-station Progressive Header CS 616 parts with extremely complex shapes which have special requirements for shapes, features and tolerances can be produced with wire diameter up to 16 mm at rates of up to 160 parts per minute.

The press is also available in the CS 616 WS version, which is equipped with a pre-heating induction system to allow the use of material like titanium and super alloys, that required pre-heating to be formed.

Request a consultation now To the contact form
Jetzt Beratung anfordern Zum Kontaktformular
icon
6-stations
Coldformer
icon
16 mm
Max. wire diameter
icon
160 parts
Output per minute
icon
1550 kN
Max. heading tonnage

Carlo Salvi Progressive Headers CS 616

Benefit from the following advantages

  • For components with extremly complex shapes
  • For components with special requirements on shape, features and tolerances
  • For special screws, bolts, solid, semi-tubular and fully tubular components
  • Trimming station on last two stations

Suitable applications

To all fasters

Automotive Fastener

In the automotive industry, our machines are leaders in the production of fasteners that meet the high demands for strength, precision and efficiency. From screws and bolts to complex fastening systems, we provide solutions that meet our customers' production needs and increase their competitiveness.

Technical specifications

Progressive Headers Model series

  • Forming stations
  • Max. cut-off length
  • Max. head diameter mm
  • Max. shank length mm
  • Min. and max. wire diameter with a strength of 600 N/mm2 (cold) mm
  • Min. and max. wire diameter with a strength of 1.000 N/mm2 (warm) mm
  • Max. speed* mm
  • Max. heading tonnage Stück/min
  • Die diameter and length kN
  • Punch diameter and length mm
  • Stroke of P.K.O.’s mm

CS 616

6

160

35

130

10 – 16

–

160

1550

90 x 150

70 x 140

40

CS 616 WS

6

160

35

130

10 – 16

10 – 15

160

1550

90 x 150

70 x 140

40

CS 663 LF

6

35

8

25

1,2 – 4

–

400

150

34 x 40

22 x 72

10

CS 663 E

6

35

8

30

2 – 5

–

400

150

34 x 40

22 x 72

15

CS 667

6

75

17

65

3 – 8

–

250

550

50 x 130

40 x 105

22

CS 558

5

90

20

80

4 – 12

–

250

800

60 x 95

50 x 115

30

CS 558 WS

5

90

20

80

4 – 12

–

250

800

60 x 95

50 x 115

30

CS 668

6

90

20

80

4 – 12

–

250

800

60 x 95

50 x 115

30

CS 668 WS

6

90

20

80

4 – 12

4 – 10

250

800

60 x 95

50 x 115

30

CS 513

5

135

28

100

6 – 12

–

180

1050

70 x 130

60 x 120

30

CS 513 WS

5

135

28

100

6 – 12

6 – 11

180

1050

70 x 130

60 x 120

30

CS 613

6

135

28

100

6 – 12

–

180

1050

70 x 130

60 x 120

30

CS 613 WS

6

135

28

100

6 – 12

6 – 11

180

1050

70 x 130

60 x 120

30

CS 516

5

160

35

130

10 – 16

–

160

1550

90 x 150

70 x 140

40

CS 516 WS

5

160

35

130

10 – 16

10 – 15

160

1550

90 x 150

70 x 140

40

CS 520

5

195

40

160

14 – 20

–

140

2250

110 x 180

80 x 165

48

CS 520 WS

5

195

40

160

14 – 20

14 – 19.5

140

2250

110 x 180

80 x 165

48

CS 620

6

195

40

160

14 – 20

–

140

2250

110 x 180

80 x 165

48

CS 620 WS

6

195

40

160

14 – 20

16 – 19.5

140

2250

110 x 180

80 x 165

48

* Max speed of production depends on shape of parts, on material employed, on wire strength, on cutting and heading tonnage and on tools dimensions.

WS = warm series
