HOTmatic
Hotformers

AMP 20 S

The compact hotformer with a high part output.

The HOTmatic AMP 20 S is the ideal machine to produce steel and brass parts with diameter of up to 38 mm in large quantities with an output of up to 200 parts per minute.

icon
3-stations
Hotformer
icon
38 mm
Part diameter
icon
200 parts
Output per minute
icon
900 kN
Total press capacity

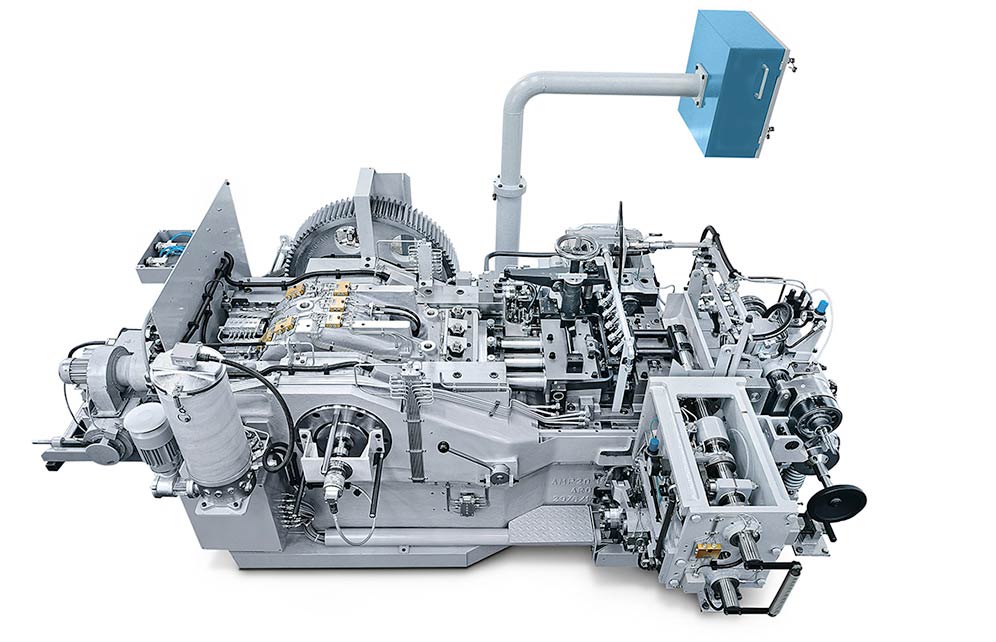

Hatebur HOTmatic AMP 20 S

Benefit from the following advantages

  • Simple operation and conversion
  • Very high production output
  • Accurate transfer
  • Compact dimensions
  • Manufacture of brass parts possible

Technical specifications

to all HOTmatic

HOTmatic Model series

AMP 20 S

3

14 – 28

0,02 – 0,17

15 – 40

~ 38

36**

140 – 200

900

AMP 20 N

3

14 – 28

0,024 – 0,217

20 – 45

~ 48

41**

140 – 200

1500

AMP 30 S

3

18 – 40

0,05 – 0,7

20 – 72

~ 67

~ 58

60

85 – 140

2500

AMP 50-9

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 50-9 HFE

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 70

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 XL

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 70 XL HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

HM 35 SAM

4

18 – 45

0,06 – 0,9

28 – 75

~ 75

~ 68

65

110 – 150

3800

HM 75 XL

4

45 – 90

0,95 – 7,5

75 – 175

~ 180

~ 144

* For round parts made of steel, depending on forming degree, sequence of operation, material and temperature.
** Max. width across flats (hexagon) made of brass approx. 38 mm

If you are wondering which metalforming press is right for you, we are here to help.

If you are wondering which metalforming press is right for you, we are here to help.

With our knowledge and experience, we can help you find the right press for your specific needs.

Hatebur Umformmaschinen AG

General Guisan-Strasse 21

4153 Reinach, Switzerland

+41 61 716 21 11
infohatebur.com
