HOTmatic
Hotformers

AMP 30 S

The three-station hotformer for medium-sized forgings.

The Hotmatic AMP 30 S  is a three-station hotformer for medium size forgings with a diameter of up to 67 mm and a production output of up to 140 parts per minute.

icon
3-station
Hotformer
icon
67 mm
Part diameter
icon
140 parts
Output per minute
icon
2.500 kN
Total press capacity

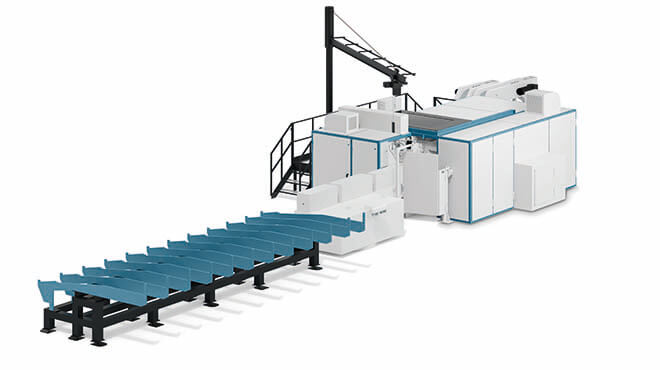

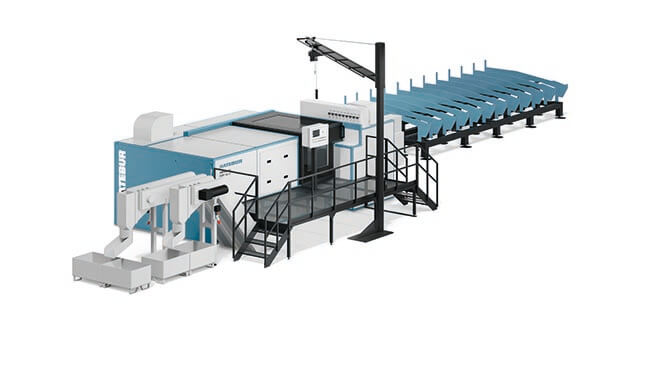

Hatebur HOTmatic AMP 30 S

Benefit from the following advantages

  • Easy to set-up and operate
  • High production output
  • Versatile for a broad range of applications
  • Well proven design

Suitable applications

Technical specifications

Zu allen HOTmatic Pressen

HOTmatic Model series

AMP 30 S

3

18 – 40

0,05 – 0,7

20 – 72

~ 67

~ 58

60

85 – 140

2500

AMP 20 S

3

14 – 28

0,02 – 0,17

15 – 40

~ 38

36**

140 – 200

900

AMP 20 N

3

14 – 28

0,024 – 0,217

20 – 45

~ 48

41**

140 – 200

1500

AMP 50-9

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 50-9 HFE

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 70

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 XL

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 70 XL HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

HM 35 SAM

4

18 – 45

0,06 – 0,9

28 – 75

~ 75

~ 68

65

90 – 150

3800

HM 75 XL

4

45 – 90

0,95 – 7,5

75 – 175

~ 180

~ 144

50 - 80

20000

* For round parts made of steel, depending on forming degree, sequence of operation, material and temperature.
** Max. width across flats (hexagon) made of brass approx. 38 mm

If you are wondering which metalforming press is right for you, we are here to help.

If you are wondering which metalforming press is right for you, we are here to help.

With our knowledge and experience, we can help you find the right press for your specific needs.
