2 Die 4 Blow Header
Coldformers

CS 243

For highest productivity in cold forming.

The CS 243 is the perfect machine for the production of solid, semi-tubular and fully tubular components with wire diameter up to 5 mm and at rates of up to 350 parts per minute.

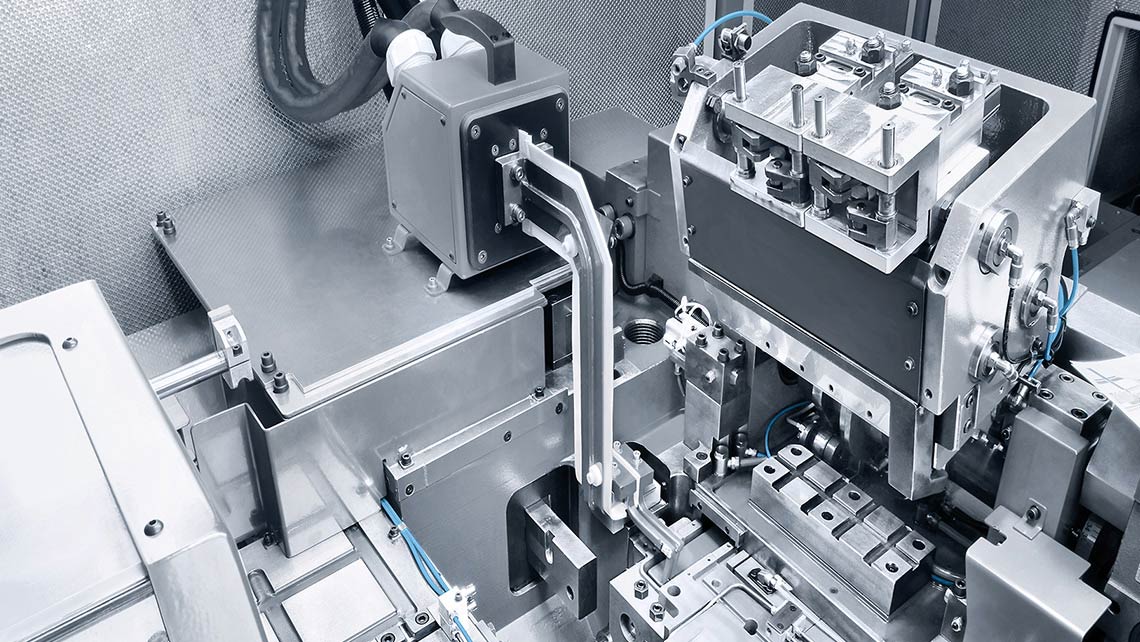

The press is also available in the CS 243 WS version, which is equipped with a pre-heating induction system to allow the use of material like titanium and super alloys, that required pre-heating to be formed.

icon
2 Die 4 Blow Header
Coldformer
icon
5 mm
Max. wire diameter
icon
350 parts
Output per minute
icon
90 kN
Max. heading tonnage

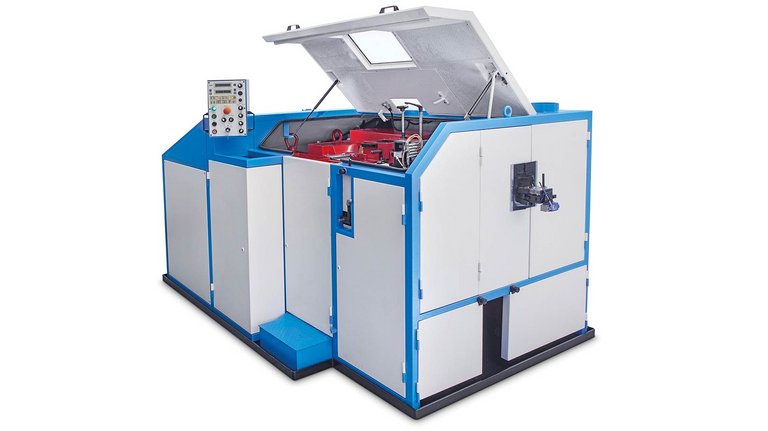

Carlo Salvi 2 Die 4 Blow Header CS 243

Benefit from the following advantages

  • For solid, semi-tubular and tubular components
  • For parts with complex shapes
  • Minimized changeover times
  • Motorized wire in-feed length adjustment
  • High precision cut-off quality

Technical specifications

to all 2 Die 4 Blow Header

2 Die 4 Blow Header Model series

CS 243

2

4

37

12

25

1,2 – 5

350

90

36 x 45

22 x 85

6.5

CS 243 WS

2

4

37

12

25

1,2 – 5

1,2 – 4

350

90

36 x 45

22 x 85

6.5

CS 246 E

2

4

75

16

60

2 – 8

250

260

60 x 95

35 x 95

12

CS 246 E WS

2

4

75

16

60

2 – 8

2 – 6,5

250

260

60 x 95

35 x 95

12

CS 248 E

2

4

115

22

92

4 – 12

170

550

68 x 115

47 x 140

20

CS 248 E WS

2

4

115

22

92

4 – 12

4 – 10

170

550

68 x 115

47 x 140

20

* Max speed of production depends on shape of parts, on material employed, on wire strength, on cutting and heading tonnage and on tools dimensions.

Machine supplied in compliance with "CE" standards – The manufacture reserves the right to change specifications, dimensions or descriptions without notice.
WS = warm series
