HOTmatic
Hotformers

AMP 20 N

The hotformer for cam lobe production.

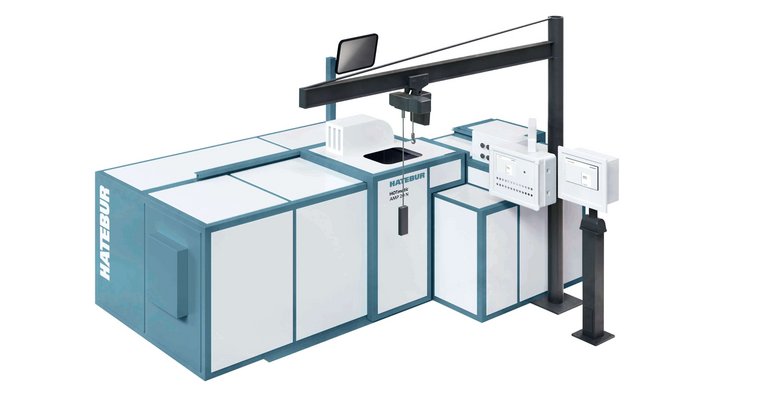

The HOTmatic AMP 20 N is the ideal machine for the cost-effective production of cam lobes for use in composite camshafts.

icon
3-stations
Hotformer
icon
48 mm
Part diameter
icon
200 parts
Output per minute
icon
1500 kN
Total press capacity

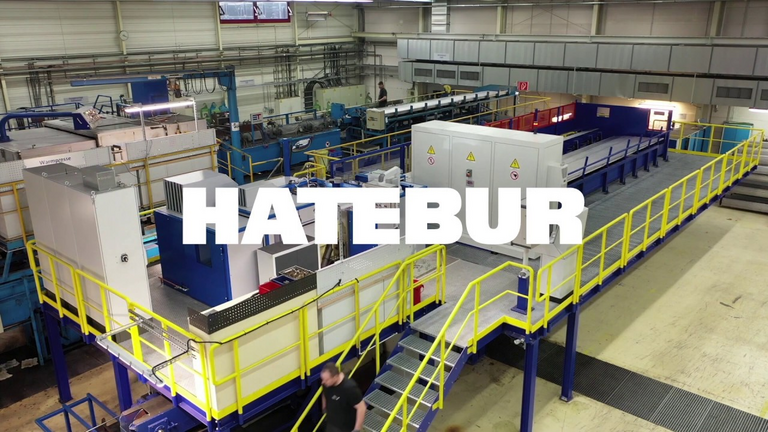

Hatebur HOTmatic AMP 20 N

Benefit from the following advantages

  • Flexible – can be used in a wide variety of applications
  • Improved press load of up to 1500 kN
  • High production speed
  • Four infeed rollers with servo motors
  • Low maintenance and operating costs
  • Easy access when setting up

Suitable applications

Technical specifications

to all HOTmatic

HOTmatic Model series

AMP 20 N

3

14 – 28

0,024 – 0,217

20 – 45

~ 48

41**

140 – 200

1500

AMP 20 S

3

14 – 28

0,02 – 0,17

15 – 40

~ 38

36**

140 – 200

900

AMP 30 S

3

18 – 40

0,05 – 0,7

20 – 72

~ 67

~ 58

60

85 – 140

2500

AMP 50-9

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 50-9 HFE

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 70

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 XL

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 70 XL HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

HM 35 SAM

4

18 – 45

0,06 – 0,9

28 – 75

~ 75

~ 68

65

110 – 150

3800

HM 75 XL

4

45 – 90

0,95 – 7,5

75 – 175

~ 180

~ 144

* For round parts made of steel, depending on forming degree, sequence of operation, material and temperature.
** Max. width across flats (hexagon) made of brass approx. 38 mm
