2 Die 4 Blow Header
Coldformers

CS 248 E

For highest productivity in cold forming.

The CS 248 E is the perfect machines for the production of solid, semi-tubular and fully tubular components with wire diameter up to 12 mm and at rates of up to 170 parts per minute.

The press is also available in the CS 248 WS version, which is equipped with a pre-heating induction system to allow the use of material like titanium and super alloys, that required pre-heating to be formed.

Request a consultation now To the contact form
Jetzt Beratung anfordern Zum Kontaktformular
icon
2 Die 4 Blow Header
Coldformer
icon
12 mm
Max. wire diameter
icon
170 parts
Output per minute
icon
550 kN
Max. heading tonnage

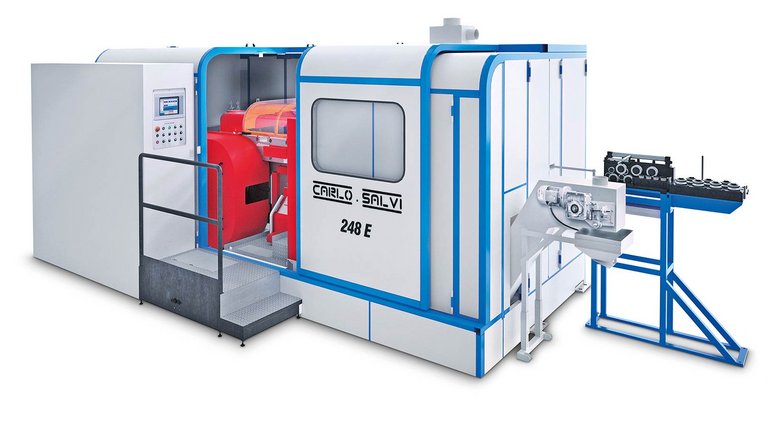

Carlo Salvi 2 Die 4 Blow Header CS 248 E

Benefit from the following advantages.

  • For solid, semi-tubular and tubular components
  • For parts with complex shapes
  • Minimized changeover times
  • Motorized wire in-feed length adjustment
  • High precision cut-off quality

Suitable applications

To all fasters

Nuts, Inserts

Our machines provide the accuracy and efficiency required for the production of nuts and inserts used in the aerospace industry.

Pins, Bolts, Studs

With our leading technology and precision, our machines enable the production of pins, bolts and studs that meet the most stringent aerospace requirements.

Rivets

With advanced technology and years of experience in the industry, we supply machines that ensure the highest quality and performance for the production of rivets.

Automotive Fastener

In the automotive industry, our machines are leaders in the production of fasteners that meet the high demands for strength, precision and efficiency. From screws and bolts to complex fastening systems, we provide solutions that meet our customers' production needs and increase their competitiveness.

Technical specifications

2 Die 4 Blow Header Model series

  • Number of dies
  • Number of punches
  • Max. cut-off length
  • Max. head diameter mm
  • Max. shank length mm
  • Min. and max. wire diameter with a strength of 600 N/mm2 (cold)
  • Min. and max. wire diameter with a strength of 1.000 N/mm2 (warm) mm
  • Max. speed* mm
  • Max. heading tonnage pce/min
  • Die diameter and length kN
  • Punch diameter and length mm
  • Stroke of P.K.O.’s mm

CS 248 E

2

4

115

22

92

4 – 12

–

170

550

68 x 115

47 x 140

20

CS 248 E WS

2

4

115

22

92

4 – 12

4 – 10

170

550

68 x 115

47 x 140

20

CS 243

2

4

37

12

25

1,2 – 5

–

350

90

36 x 45

22 x 85

6.5

CS 243 WS

2

4

37

12

25

1,2 – 5

1,2 – 4

350

90

36 x 45

22 x 85

6.5

CS 246 E

2

4

75

16

60

2 – 8

–

250

260

60 x 95

35 x 95

12

CS 246 E WS

2

4

75

16

60

2 – 8

2 – 6,5

250

260

60 x 95

35 x 95

12

* Max speed of production depends on shape of parts, on material employed, on wire strength, on cutting and heading tonnage and on tools dimensions.

Machine supplied in compliance with "CE" standards – The manufacture reserves the right to change specifications, dimensions or descriptions without notice.
WS = warm series
