Progressive Headers
Coldformers

CS 663 E

For highest productivity in cold forming.

With the 6-station Progressive Header CS 663 E parts with extremely complex shapes which have special requirements for shapes, features and tolerances can be produced with wire diameter up to 5 mm at rates of up to 400 parts per minute.

icon
6-stations
Coldformer
icon
5 mm
Max. wire diameter
icon
400 parts
Output per minute
icon
150 kN
Max. heading tonnage

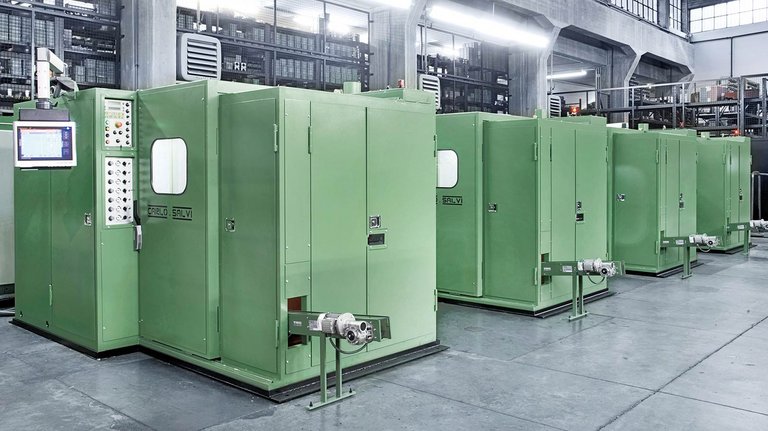

Carlo Salvi Progressive Headers CS 663 E

Benefit from the following advantages

  • For components with extremely complex shapes
  • For components with special requirements on shape, features and tolerances
  • For special screws, bolts, solid, semi-tubular and fully tubular components
  • Trimming station on last two stations
  • With Toggle-Action system
  • Linear wire infeed

Technical specifications

to all Progressive Headers

Progressive Headers Model series

CS 663 E

6

35

8

30

2 – 5

400

150

34 x 40

22 x 72

15

CS 663 LF

6

35

8

25

1,2 – 4

400

150

34 x 40

22 x 72

10

CS 667

6

75

17

65

3 – 8

250

550

50 x 130

40 x 105

22

CS 558

5

90

20

80

4 – 12

250

800

60 x 95

50 x 115

30

CS 558 WS

5

90

20

80

4 – 12

250

800

60 x 95

50 x 115

30

CS 668

6

90

20

80

4 – 12

250

800

60 x 95

50 x 115

30

CS 668 WS

6

90

20

80

4 – 12

4 – 10

250

800

60 x 95

50 x 115

30

CS 513

5

135

28

100

6 – 12

180

1050

70 x 130

60 x 120

30

CS 513 WS

5

135

28

100

6 – 12

6 – 11

180

1050

70 x 130

60 x 120

30

CS 613

6

135

28

100

6 – 12

180

1050

70 x 130

60 x 120

30

CS 613 WS

6

135

28

100

6 – 12

6 – 11

180

1050

70 x 130

60 x 120

30

CS 516

5

160

35

130

10 – 16

160

1550

90 x 150

70 x 140

40

CS 516 WS

5

160

35

130

10 – 16

10 – 15

160

1550

90 x 150

70 x 140

40

CS 616

6

160

35

130

10 – 16

160

1550

90 x 150

70 x 140

40

CS 616 WS

6

160

35

130

10 – 16

10 – 15

160

1550

90 x 150

70 x 140

40

CS 520

5

195

40

160

14 – 20

140

2250

110 x 180

80 x 165

48

CS 520 WS

5

195

40

160

14 – 20

14 – 19.5

140

2250

110 x 180

80 x 165

48

CS 620

6

195

40

160

14 – 20

140

2250

110 x 180

80 x 165

48

CS 620 WS

6

195

40

160

14 – 20

16 – 19.5

140

2250

110 x 180

80 x 165

48

* Max speed of production depends on shape of parts, on material employed, on wire strength, on cutting and heading tonnage and on tools dimensions.

WS = warm series
