HOTmatic
Hotformers

HM 35 SAM

The ultrafast hotformer for maximum output.

The hotformer with new servohydraulic ejector technology for maximum productivity and process reliability.

The HOTmatic HM 35 SAM is a modern forming machine for highest demands. The new hydraulic ejector technology (SAM), the simple operating concept, the short retooling times and the high discharge allow an efficient production of complex formed parts. The innovative infeed and shearing system together with the unique transport system, are able to guarantee a very high production speed as well as a particularly low-impact discharge of the finished parts.



Request a consultation now To the contact form
youtube video play button
youtube video play button
Jetzt Beratung anfordern Zum Kontaktformular
icon
4-station
Hotformer
icon
75 mm
Part diameter
icon
150 parts
Output per minute
icon
3.800 kN
Press capacity

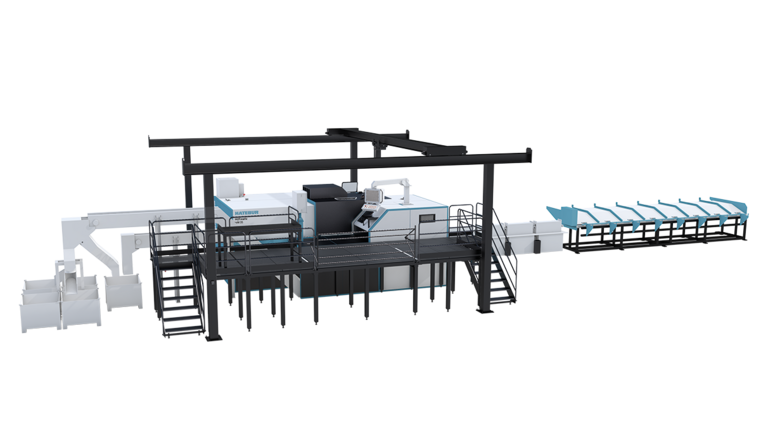

Hatebur HOTmatic HM 35 SAM

Benefit from the following advantages

  • Combined forming processes for optimum forming results
  • High process reliability
  • Controlled and low-impact part discharge
  • Clever operating concept for short retooling times

Suitable applications

To all fasters

Roller bearings

Our machines provide the accuracy and reliability required to produce inner and outer rings for rolling bearings used in a wide range of applications, from automotive to machinery.

Ball bearings

With our advanced machine technology, ball bearing rings can be produced with the highest precision and material efficiency.

Drivetrain

Our systems are designed for precise and flexible production of drivetrain components in transmissions, differentials and constant velocity joints. They feature a robust design for long service life and ease of use. They feature a robust design for long service life and ease of use.

Technical specifications

HOTmatic Model series

  • Forming stations
  • Bar diameter
  • Initial weight mm
  • Cut-off length kg
  • Max. outer diameter* mm
  • Max. outer diameter for combination parts mm
  • Max. width across falts (hex) made of steel ca. mm
  • Strokes per minute (continuously variable) mm
  • Total press capacity

HM 35 SAM

4

18 – 45

0,06 – 0,9

28 – 75

~ 75

~ 68

65

90 – 150

3800

AMP 20 S

3

14 – 28

0,02 – 0,17

15 – 40

~ 38

–

36**

140 – 200

900

AMP 20 N

3

14 – 28

0,024 – 0,217

20 – 45

~ 48

–

41**

140 – 200

1500

AMP 30 S

3

18 – 40

0,05 – 0,7

20 – 72

~ 67

~ 58

60

85 – 140

2500

AMP 50-9

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 50-9 HFE

4

28 – 55

0,17 – 2,0

32 – 110

~ 108

~ 100

90

60 – 100

9000

AMP 70

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 145

~ 122

130

50 – 80

15000

AMP 70 XL

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

AMP 70 XL HFE

4

36 – 75

0,4 – 5,0

50 – 150

~ 165

~ 122

130

50 – 80

15000

HM 75 XL

4

45 – 90

0,95 – 7,5

75 – 175

~ 180

~ 144

–

50 - 80

20000

* For round parts made of steel, depending on forming degree, sequence of operation, material and temperature.
** Max. width across flats (hexagon) made of brass approx. 38 mm
